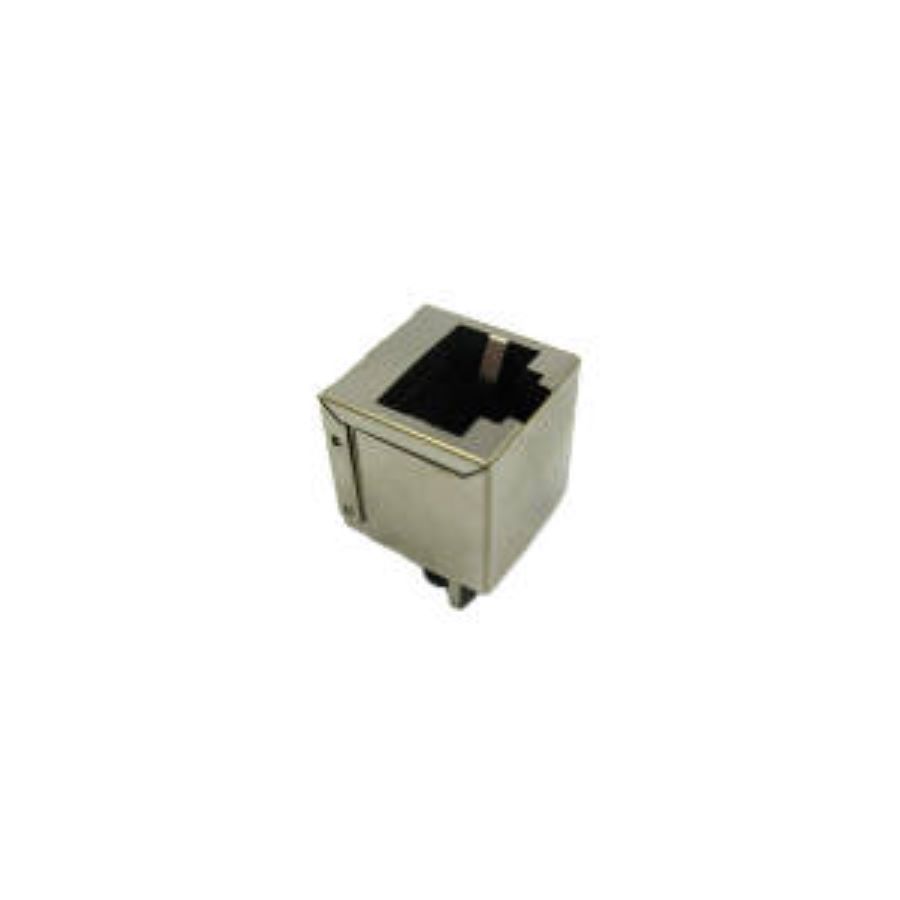

615008138221
Manufacturer:
Wurth Electronics
Mfr.Part #:
615008138221
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Length | 16.65 mm |
| Width | 15.9 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 16.65 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 16.4 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 1.5 A |
| Orientation | Vertical |
| Operating Supply Voltage | 120 V |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | User Selectable |
| Connector Type | RJ45, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Mounting Angle | Straight |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 1433
Distributors
pcbx
pcbxUnit Price$1.51391
Ext.Price$1.51391
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.51391 | $1.51391 |
| 10 | $1.48599 | $14.85990 |
| 25 | $1.45707 | $36.42675 |
| 50 | $1.42871 | $71.43550 |
| 100 | $1.37178 | $137.17800 |
| 300 | $1.34304 | $402.91200 |
| 500 | $1.31490 | $657.45000 |
